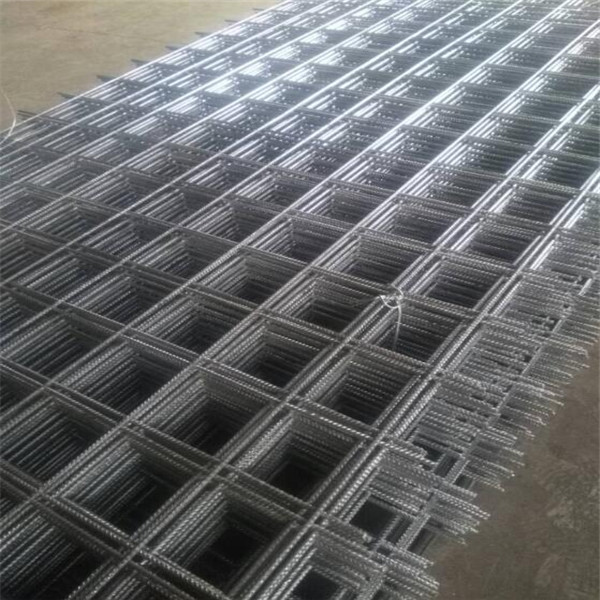

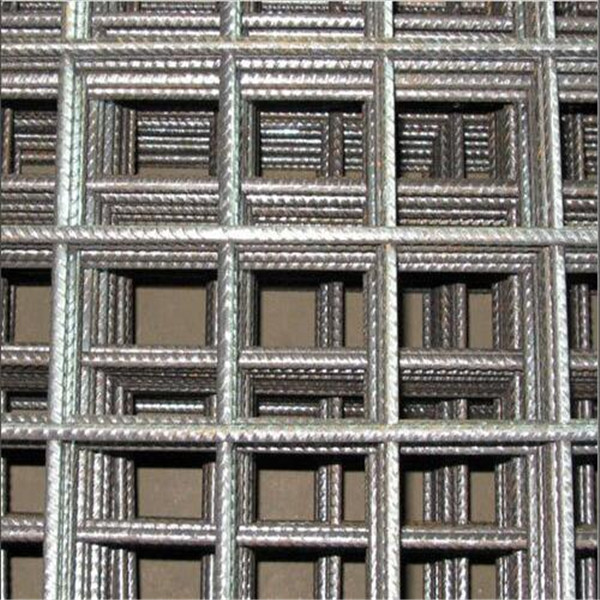

rebar welded wire mesh panel
Material:Q195
Wire diameter: 5mm to 16mm.
Welded bar panels opening: 75mm to 300mm.
Panel length: 100cm to 4000cm.
Panel width: 100cm to 300cm
- Description
- Contact Form
Introduction:
Steel bar welded mesh is considered by domestic and abroad a new, highly effective, high quality construction steel reinforced concrete structures and a large number of applications in industrial and civil building floor, roof, wall, floor, concrete pavement and bridge deck pavement, airport runway, tunnel lining, concrete pipe, pile, etc.
Applications:
Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.
Specification of Steel Bar Welded Wire Mesh | ||||
Technical Data | GWC2400 | GWC2600 | GWC3000 | |
Horizontal Spacing | 100200300400 | 100200300400 | 100200300400 | |
Vertical Spacing | 50-600 | 50-600 | 50-600 | |
Wire Diameter | 5-12 | 5-12 | 5-12 | |
Max. Panel Length | 2400 | 2600 | 4000 |
